Siemens 3SU1100-2BM60-1NA0 3SU11002BM601NA0, 1x -04011209957640

Marka Siemens

(0 ocen)

34,99 EUR

(= 263,63 kn)

Kod proizvoda: 1379613
EAN: 4011209957640
Procijenjena isporuka:14.10.2026 - 16.10.2026

Opis

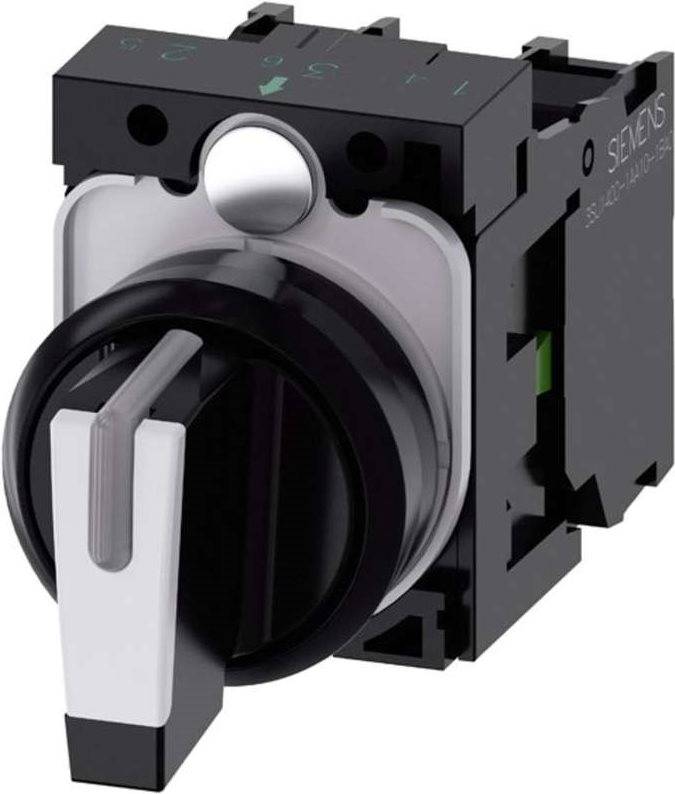

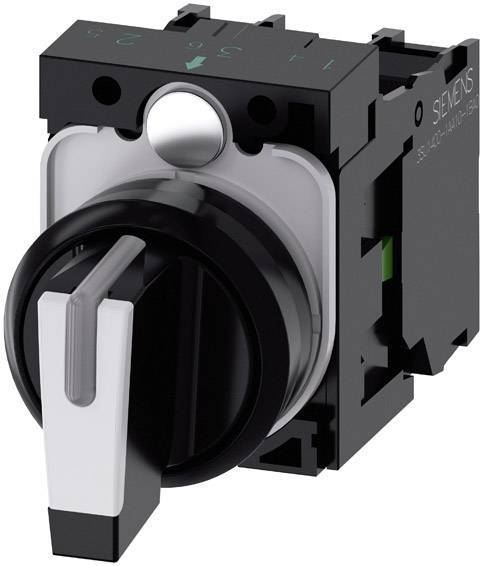

Selector switch, illuminable, 22 mm, round, plastic, white, selector switch, short, 3 switch positions I>OUnder the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.

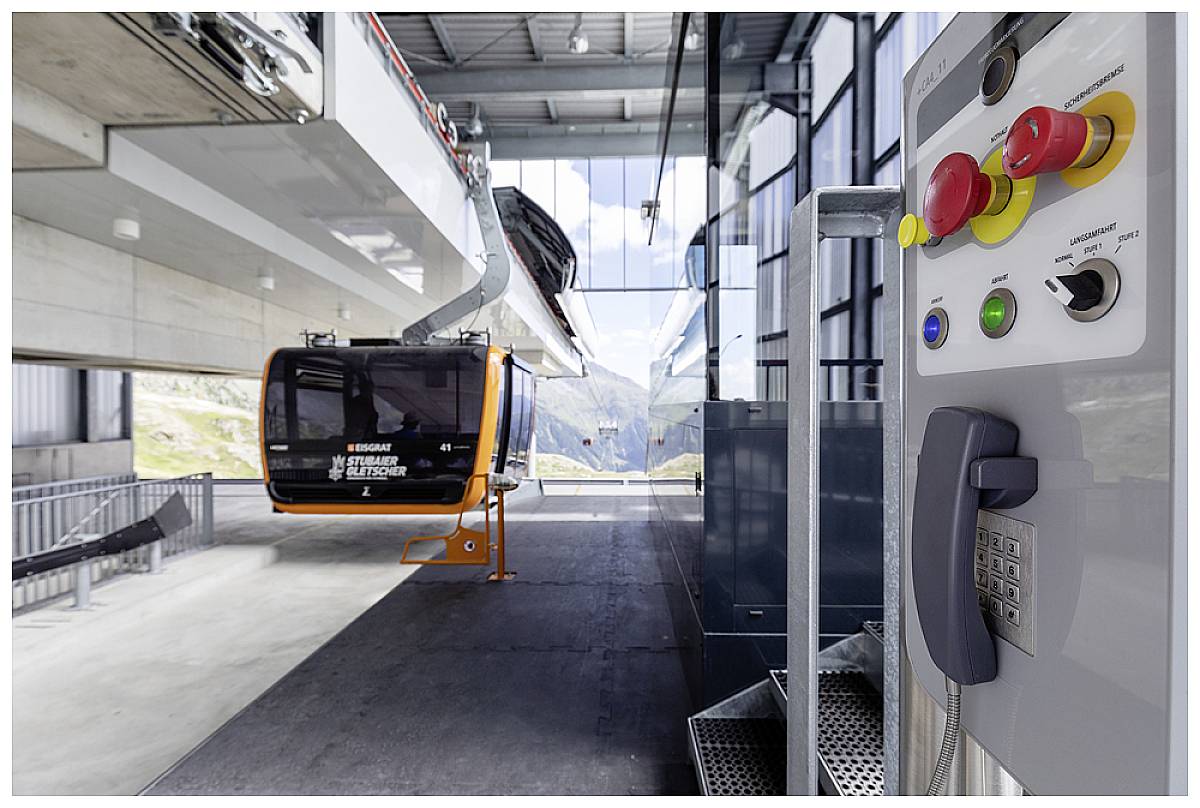

Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, 2-4 switching positions, short/long selector or rotary knob, illuminated/non-illuminated (lighting can also be retrofitted), latching/momentary contact operation.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 3SU11002BM601NA0

EAN koda: 4011209957640

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Podatkovna tablica 1379613 Siemens 3SU1100-2BM60-1NA0 3SU11002BM601NA0, 1x -04011209957640

Informacije 1379613 Siemens 3SU1100-2BM60-1NA0 3SU11002BM601NA0, 1x -04011209957640

Upute za rad i sigurnost 1379613 Siemens 3SU1100-2BM60-1NA0 3SU11002BM601NA0, 1x -04011209957640

Tehnički podaci

Vrsta proizvoda	preklopni prekidač
Vrsta osvjetljenja	točkasta rasvjeta
Boja	crna bijela
Priključak	vijak vanjski LED element
Funkcija	s povratom
Vrsta kontakta	2 zatvarač
Mehanički vijek trajanja	1000000
Električni vijek trajanja	10000000
Vrsta zaštite	IP66 IP67 IP69 k (u ugrađenom stanju)
Kut prebacivanja	2 x 45 °
Položaj prebacivanja	1 x (on)/off/(on)

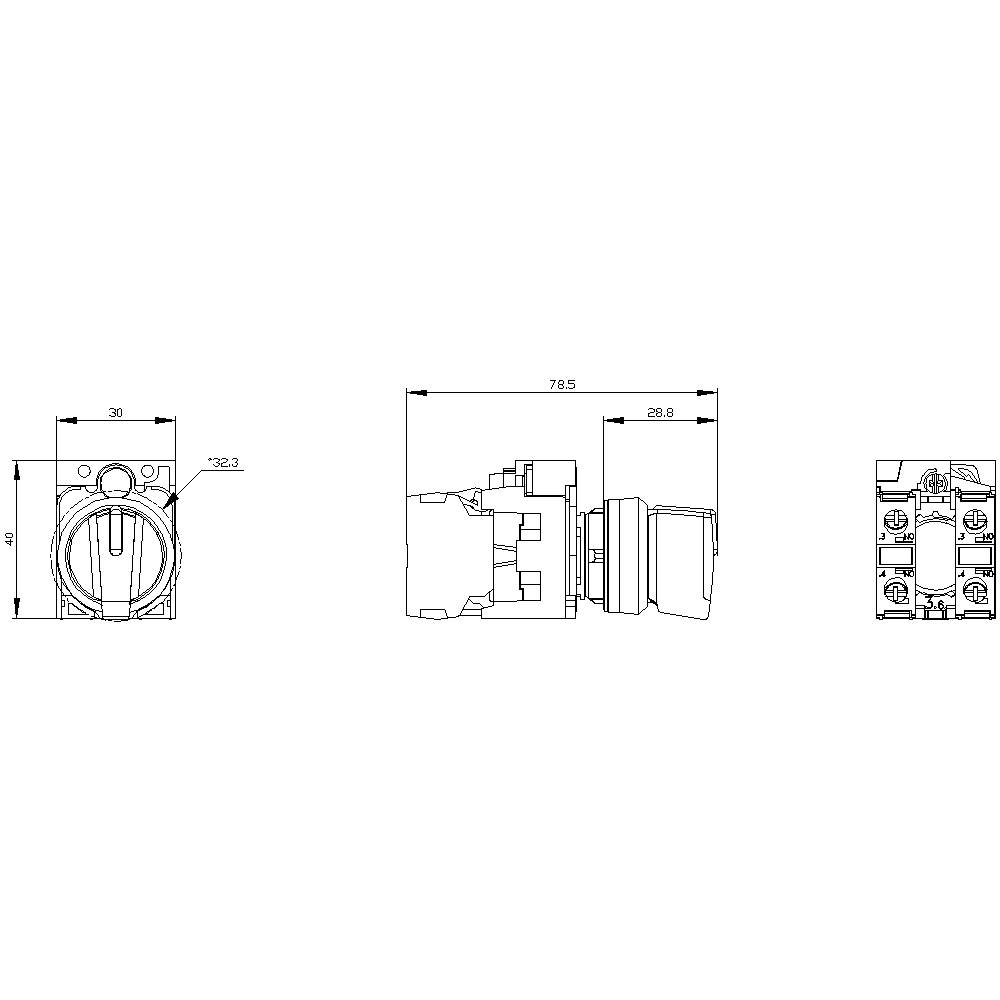

Širina	32.3 mm
Visina	40 mm
Sadržaj	1 St.
dim.	(Š x V) 32.3 mm x 40 mm
RoHS-konforno	Da
Tip	3SU1100-2BM60-1NA0
Uključena rasvjetna tijela	ne
Hole diameter	22.3 mm
Colour button	White
Number of switch positions	3
Suitable for lighting	TRUE
Spring-return	FALSE
Colour front ring	Black
Type of electric connection	Screw connection
Width opening	32.3 mm
Height opening	28.8 mm
Degree of protection (IP)	IP67/IP69K
With light source	FALSE
Material front ring	Plastic
With front ring	TRUE
Type of control element	Wing knob
Switching function latching	FALSE
Number of contacts as normally closed contact	0

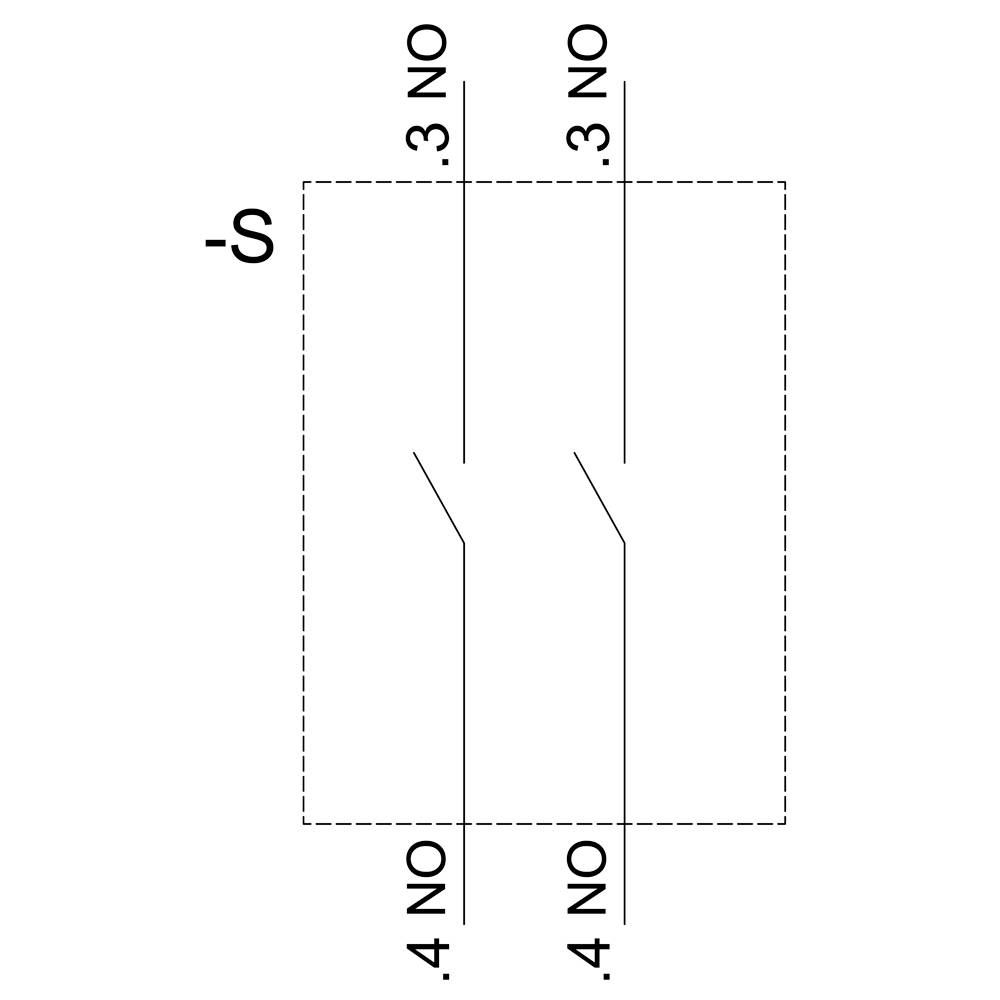

Number of contacts as normally open contact	2
Number of contacts as change-over contact	0
Degree of protection (NEMA)	Other
