Opis
Semiconductor relay, 1-phase 3RF2 Overall width 22.5 mm, 70 A 48-460 V / 110-230 V AC screw terminal solid-state relay SIRIUS 3RF21 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
Isporuka uključuje
Poluprovodnički relej 1 kom. Siemens 3RF2170-1AA24 strujno opterećenje (maks.): 70 A prebacivanje pri nultom naponu
Namigi
Imajte na umu da je proizvod poseban poredak i stoga je isključen iz povrata. Posebna narudžba, bez prava na povrat.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3RF21701AA24
EAN koda: 4011209573970
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnički podaci
| Vrsta proizvoda |
poluvodički relej |
|---|---|
| Tip |
3RF2170-1AA24 |
| Prebacivanje |
nulti napon uklopa |
| Priključak |
vijčana stezaljka |
| Kontrola napona (min.) |
110 V/AC |
| Kontrolni napon (maks.) |
230 V/AC |
| Područje upravljačkog napona |
110 - 230 V/AC |
| Kontrola struje (maks.) |
15 mA |
| Prenaponska struja (maks.) |
1200 A |
| Prebacivanje napona (min.) |
48 V/AC |
| Preklopni napon (maks.) |
460 V/AC |
| Učitaj struje (maks.) |
70 A |
| Vrsta kontakta |
1 zatvarač |
| Min. temperatura |
-25 °C |
| Maks. temperatura |
+60 °C |
| Vrsta zaštite |
IP20 |

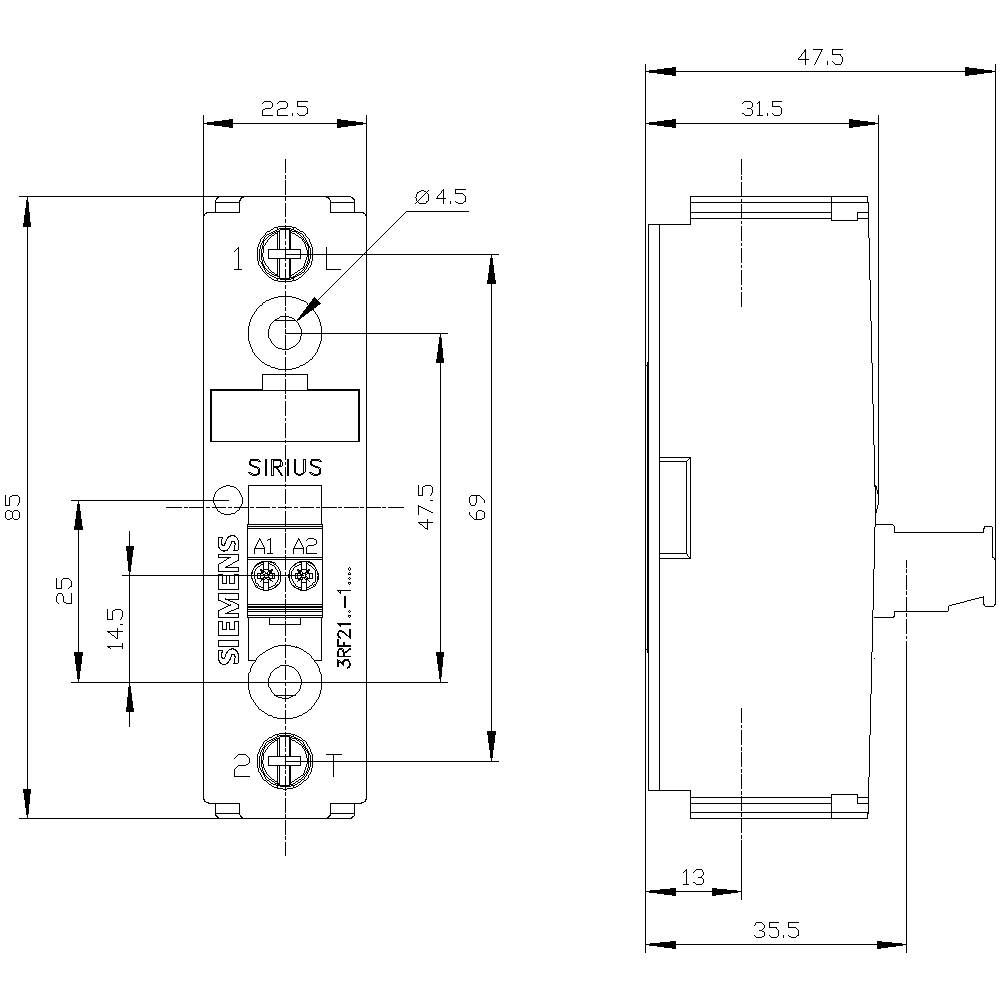

| Širina |
22.5 mm |
| Visina |
85 mm |
| Dubina |
48 mm |
| Težina |
81 g |
| RoHS-konforno |
Da |
| Sadržaj |
1 St. |
| Number of phases |
1 |
| Suitable for distribution board |
TRUE |
| Rated operation current Ie at AC-1 |
70 A |
| Voltage type for actuating |
AC |
| Rated operation current Ie at AC-51 |
50 A |
