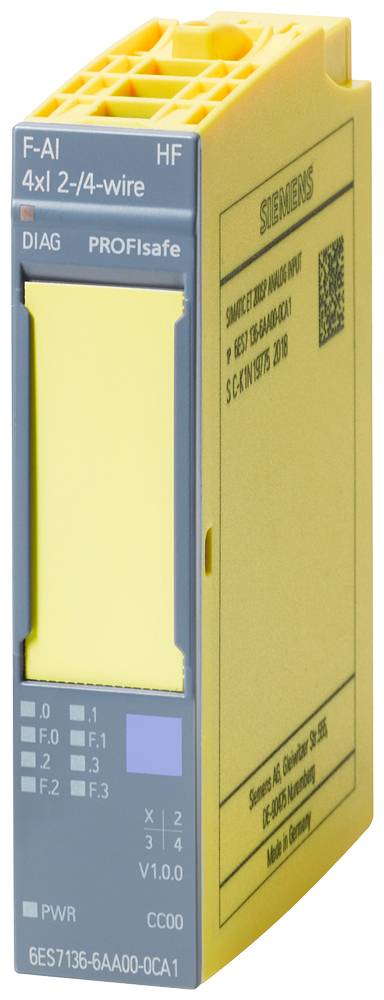

Siemens 6ES7136-6AA00-0CA1

Marka Siemens

(0 ocen)

835,00 EUR

(= 6.291,31 kn)

Kod proizvoda: 2874002
EAN: 4047623408031
Procijenjena isporuka:22.10.2026 - 26.10.2026

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 6ES71366AA000CA1

EAN koda: 4047623408031

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Podatkovna tablica 2874002 Siemens 6ES7136-6AA00-0CA1

Upute za rad i sigurnost 2874002 Siemens 6ES7136-6AA00-0CA1

Tehnički podaci

Tip	6ES7136-6AA00-0CA1
Proizvođač-br. dijela	6ES71366AA000CA1
Width	15
Height	73 mm
Depth	58 mm
Suitable for safety functions	TRUE
Number of analogue inputs	4
Number of analogue outputs	0
Voltage type (supply voltage)	DC
Supporting protocol for LON	FALSE
Number of HW-interfaces industrial Ethernet	0
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	0
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	0
Number of HW-interfaces parallel	0
Number of HW-interfaces other	0
Supporting protocol for TCP/IP	FALSE
Supporting protocol for ASI	FALSE
Supporting protocol for CAN	FALSE
Supporting protocol for INTERBUS	FALSE
Supporting protocol for KNX	FALSE
Supporting protocol for Modbus	FALSE
Supporting protocol for Data-Highway	FALSE
Supporting protocol for DeviceNet	FALSE
Supporting protocol for SUCONET	FALSE
Input, current	TRUE
Input signal, configurable	TRUE
Resolution of the analogue inputs	16 Bit
Type of electric connection	Plug-in connection
Suitable for rail mounting	TRUE
Explosion safety category for gas	ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust	None
System accessory	TRUE
Degree of protection (IP)	IP20
Supporting protocol for SERCOS	FALSE
Supporting protocol for INTERBUS-Safety	FALSE
Number of interfaces PROFINET	0
Number of HW-interfaces wireless	0
Front built-in possible	FALSE
Rack-assembly possible	TRUE
Wall mounting/direct mounting	FALSE
Radio standard Bluetooth	FALSE
Radio standard WLAN 802.11	FALSE
IO link master	FALSE
Performance level according to EN ISO 13849-1	Level e
Supporting protocol for AS-Interface Safety at Work	FALSE
Supporting protocol for DeviceNet Safety	FALSE
Supporting protocol for EtherNet/IP	FALSE
Supporting protocol for Foundation Fieldbus	FALSE
Supporting protocol for PROFINET CBA	FALSE
Supporting protocol for SafetyBUS p	FALSE
Analogue inputs configurable	TRUE
Radio standard GPRS	FALSE
Radio standard GSM	FALSE
Mobile communications standard 3G (UMTS)	FALSE
SIL according to IEC 61508	3
