Opis

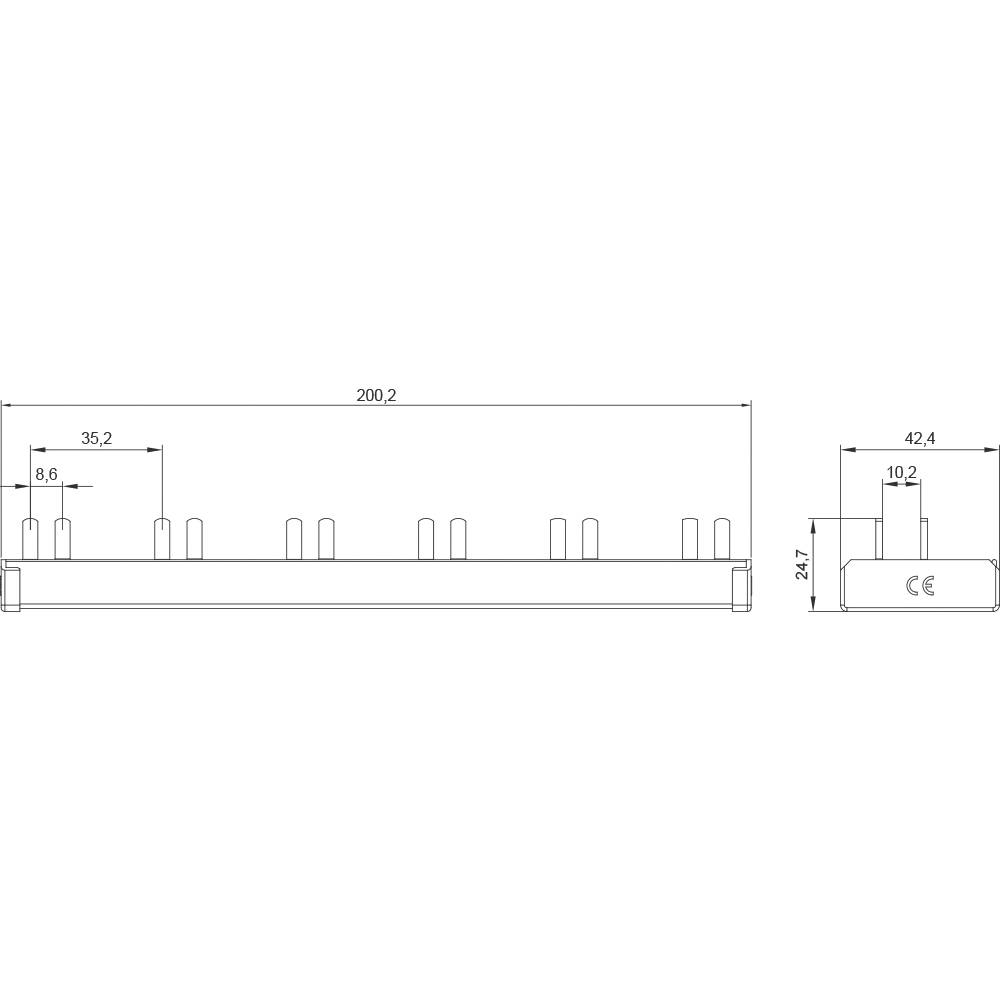

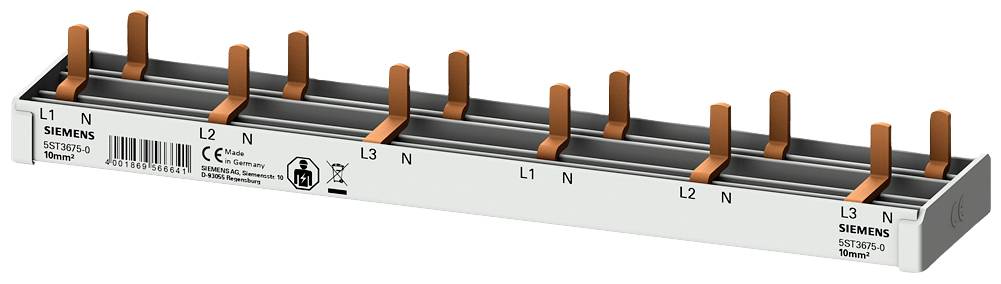

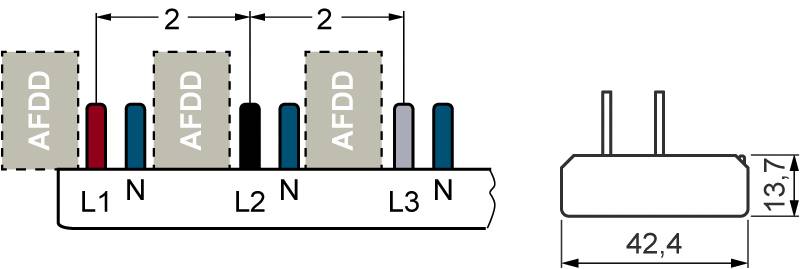

compact Pin Busbar, 10mm2 connection: 3p/N 6x AFDD 5SM6 + 6x compact device 1 MW touch protected 12 MW fixed length Additional components for residual current protective devices and miniature circuit breakers from Siemens. The additional components from Siemens are an important part of the SENTRON protection devices for electrical installations. As accessories for residual current and miniature circuit breakers, they offer many options for implementing a wide range of functions. Whether for infrastructure or industrial applications, Siemens offers the right accessories for all residual current and miniature circuit breakers. We provide the right device for every requirement. Key features of the Siemens accessories for residual current and miniature circuit breakers: 1. Can be universally retrofitted with all additional components 2. User-friendly and easy installation and connection technology. 3. Reliable safety during installation with standard touch protection. 4. Optimized technology for your safety - only from Siemens.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 5ST36750
EAN koda: 4001869566641
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Podatkovna tablica 2877384 Siemens 5ST36750 1 St.
Upute za rad i sigurnost 2877384 Siemens 5ST36750 1 St.
Upute za rad i sigurnost 2877384 Siemens 5ST36750 1 St.
Upute za rad i sigurnost 2877384 Siemens 5ST36750 1 St.
Upute za rad i sigurnost 2877384 Siemens 5ST36750 1 St.
Upute za rad i sigurnost 2877384 Siemens 5ST36750 1 St.
Upute za rad i sigurnost 2877384 Siemens 5ST36750 1 St.
Upute za rad i sigurnost 2877384 Siemens 5ST36750 1 St.
Upute za rad i sigurnost 2877384 Siemens 5ST36750 1 St.
Upute za rad i sigurnost 2877384 Siemens 5ST36750 1 St.
Upute za rad i sigurnost 2877384 Siemens 5ST36750 1 St.
Upute za rad i sigurnost 2877384 Siemens 5ST36750 1 St.
Tehnički podaci
| dim. | |
|---|---|
| Nazivna struja - zaokružena | |
| Sadržaj |
1 St. |
| Težina |
0 |
| Insulated |
TRUE |
| Number of phases |
4 |
| Cross section |
10 mm² |
| Number of poles |
3 |
| Length |
200 m |
| Width in number of modular spacings |
6 |
| Type of electric connection |
Pin |
| Number of modular spacings |
12 |
| Suitable for devices with auxiliary switch |
FALSE |
| Suitable for devices with N-conductor |
TRUE |
| Suitable for number of devices |
6 |
| Max. rated operation voltage Ue |
230 V |
| Module width |
36 |
