Varnost izdelkov (GPSR)
Proizvajalčeva koda: 2CPX052027R9999
EAN koda: 4011617520276
Registrirana blagovna znamka: Striebel & John
Ime proizvajalca: ABB STRIEBEL & JOHN GmbH
Naslov proizvajalca: Am Fuchsgraben 2-3
Poštna številka proizvajalca: 77880
Kraj proizvajalca: Sasbach
Država proizvajalca: Germany
Telefon proizvajalca: +4978416090
Elektronski kontakt proizvajalca: https://www.striebelundjohn.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnički podaci

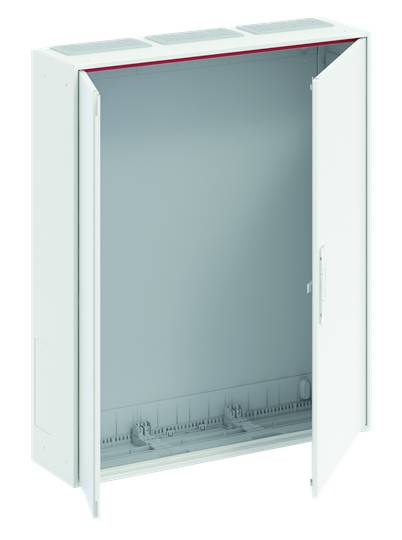

| Vrsta proizvoda |
prazan ormar |
|---|---|
| Broj redova |
6 |
| Vrsta montaže |
nadžbukna |
| Boja |
bijela |
| Širina |
800 mm |
| Visina |
950 mm |
| dim. |
(Š x V x D) 800 x 950 x 215 mm |
| Dubina |
215 mm |
| Sadržaj |
1 St. |
| Mounting method |
Surface mounted |
| Protection class according to IEC 61140 |
II |
| Colour |
White |
| Width |
800 mm |
| Height |
950 mm |
| Depth |
215 mm |
| RAL-number |
9016 |
| With mounting plate |
FALSE |
| Surface protection |
Powder coating |
| Built-in depth |
190 mm |
| Number of rows |
6 |
| Type of covering |
Door |
| Number of conduit inlets |
153 |
| Inner depth |
207 mm |
| Housing material |
Steel plate/plastic |
| Circuit integrity |
None |
| Width in number of modular spacings |
36 |
| Suitable for outdoor use |
FALSE |
| Impact strength |
IK07 |
| Number of modules |
216 |
| Type of door |
Double |
| Degree of protection (IP) |
IP44 |
| Transparent cover/door |
FALSE |
| With lock |
TRUE |
| Suitable for lightning protection |
TRUE |
| Nominal current (In) |
250 A |
| Material plate thickness cabinet |
0.9 mm |
| Material plate thickness door/cover |
0.9 mm |
| Cover model |
With notch |
| Number of openings for flange plates |
3 |
| Degree of protection (NEMA) |
Other |
| Cover with overpressure release |
FALSE |
