Varnost izdelkov (GPSR)
Proizvajalčeva koda: 1079554
EAN koda: 4055626800325
Registrirana blagovna znamka: Phoenix Contact
Ime proizvajalca: PHOENIX CONTACT Deutschland GmbH
Naslov proizvajalca: Flachsmarktstr. 8
Poštna številka proizvajalca: 32825
Kraj proizvajalca: Blomberg
Država proizvajalca: Germany
Telefon proizvajalca: +4905235300
Elektronski kontakt proizvajalca: https://www.phoenixcontact.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti

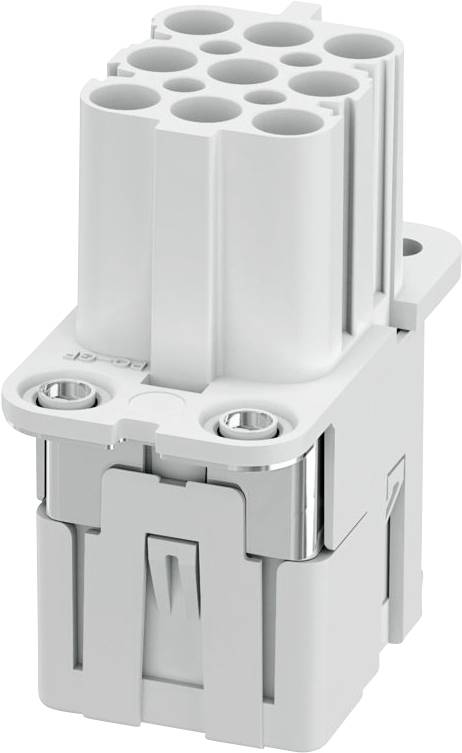

Podatkovna tablica 3452760 Phoenix Contact 1079554 kontaktni umetak Ukupan broj polova: 8 1 St.
Tehnički podaci
| Tip |
HC-COM-Q08-I-PT-F |
|---|---|
| Vrsta proizvoda |
kontaktni umetak |
| Ukupan broj polova |
8 |
| Sadržaj |
1 St. |
| Proizvođač-br. dijela |
1079554 |
| Broj polova |
8 |
| Širina |
25.6 mm |
| Visina |
48.05 mm |
| Dubina |
45 mm |
| Width |
25.6 mm |
| Height |
48.05 mm |
| Depth |
45 mm |
| Rated voltage |
320 V |
| With wire protection |
FALSE |
| Number of poles |
8 |
| Contact type |
Bus |
| Ambient temperature |
125-125 °C |
| Operating temperature |
-40-125 °C |
| Inflammability class of insulation material according to UL94 |
V0 |
| Rated surge voltage |
6 kV |
| Type of electric connection |
Spring clamp connection |
| Material of contact surface |
Other |
| Overvoltage category |
III |
| Pollution degree |
3 |
| Diameter plug-in contact |
2.5 mm |
| Contact insert without contacts |
FALSE |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.5-2.5 mm² |
| Connectable conductor cross section multi-wired |
0.5-2.5 mm² |
| With protective conductor |
TRUE |
| Material contact |
Other copper alloys |
| Material connector insert |
Thermoplastic |
| Rated current In |
16 A |
| Material of contact insert |
Thermoplastic |
| Min. number of insertion cycles |
500 |
| Number of power contacts |
8 |
| Number of control contacts |
0 |
