Opis

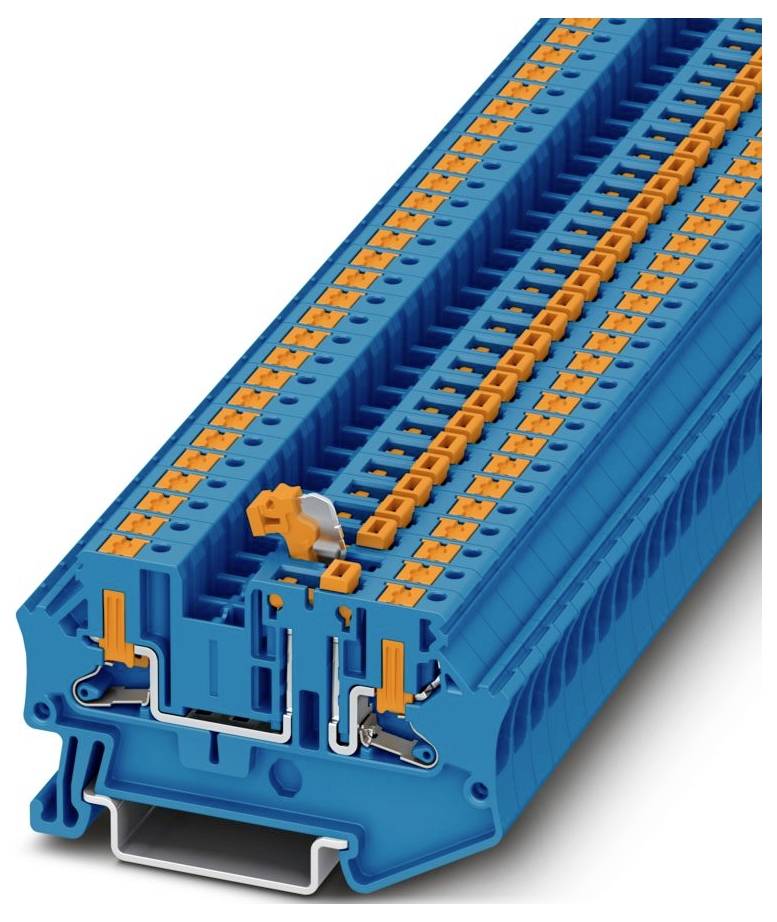

Messertrennklemme, Nennspannung: 500 V, Nennstrom: 20 A, 1. Etage, Anschlussart: Push-in-Anschluss, Bemessungsquerschnitt: 4 mm², Querschnitt: 0,2 mm² - 6 mm², Montage: NS 35/7,5, NS 35/15, Farbe: blau
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 1088740
EAN koda: 4055626889894
Registrirana blagovna znamka: Phoenix Contact
Ime proizvajalca: PHOENIX CONTACT Deutschland GmbH
Naslov proizvajalca: Flachsmarktstr. 8
Poštna številka proizvajalca: 32825
Kraj proizvajalca: Blomberg
Država proizvajalca: Germany
Telefon proizvajalca: +4905235300
Elektronski kontakt proizvajalca: https://www.phoenixcontact.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Podatkovna tablica 3563666 Phoenix Contact 1088740 mjerna razdvojna stezaljka plava boja 50 St.
Tehnički podaci
| Vrsta proizvoda |
mjerna razdvojna stezaljka |
|---|---|
| Boja |
plava boja |
| Nazivna struja |
20 A |
| Nazivna struja - zaokružena |
20 A |
| Nazivni napon |
500 V |
| Proizvođač-br. dijela |
1088740 |
| Sadržaj |
50 St. |
| Tip |
PTV 4-MT BU |
| dim. |
(Š x V x D) 6.2 x 63.3 x 36.8 mm |
| Širina |
6.2 mm |
| Visina |
63.3 mm |
| Dubina |
36.8 mm |
| Nazivni napon |
500 V |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Colour |
Blue |
| Width |
6.2 mm |
| Height |
63.3 mm |
| Depth |
36.8 mm |
| Rated voltage |
500 V |
| Inflammability class of insulation material according to UL94 |
V0 |
| Closing plate required |
TRUE |
| Type of electrical connection 1 |
Other |
| Type of electrical connection 2 |
Other |
| Type of cross disconnection |
None |
| With integrated test socket |
FALSE |
| Number of clamp positions per level |
2 |
| Internally connected stages |
TRUE |
| Connectable conductor cross section solid-core |
0.2-6 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.2-0.2 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.2-6 mm² |
| Material insulation body |
Other |
| Rated current In |
20 A |
