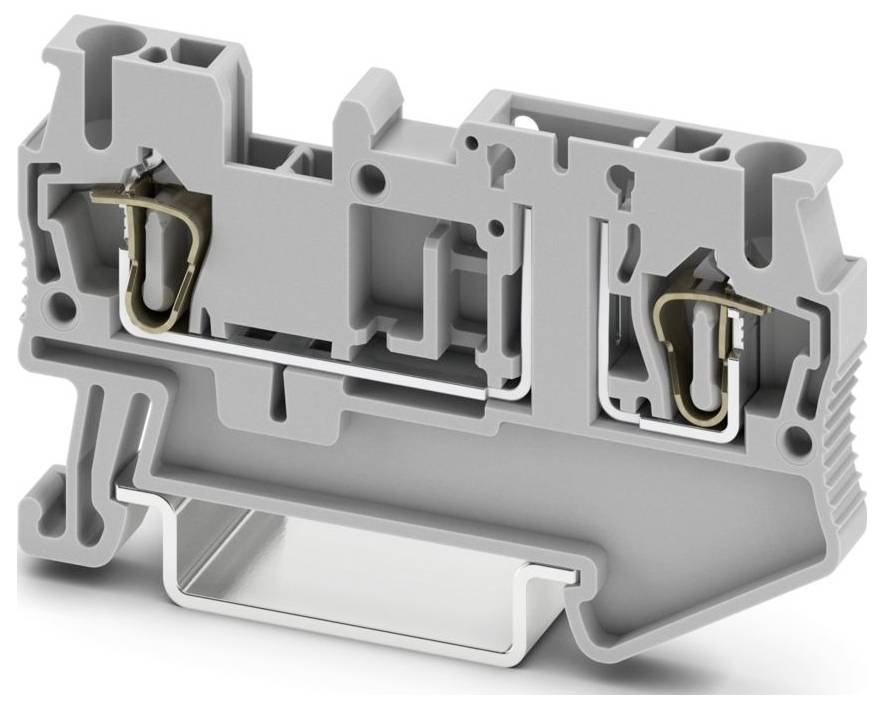

Phoenix Contact 3038435 razdvojna stezaljka siva 50 St.

Marka Phoenix Contact

(0 ocen)

134,99 EUR

(= 1.017,08 kn)

Proizvajalčeva koda: 3038435

EAN koda: 4017918890612

Registrirana blagovna znamka: Phoenix Contact

Ime proizvajalca: PHOENIX CONTACT Deutschland GmbH

Naslov proizvajalca: Flachsmarktstr. 8

Poštna številka proizvajalca: 32825

Kraj proizvajalca: Blomberg

Država proizvajalca: Germany

Telefon proizvajalca: +4905235300

Elektronski kontakt proizvajalca: https://www.phoenixcontact.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Vrsta proizvoda	razdvojna stezaljka
Boja	siva
Nazivna struja	20 A
Nazivna struja - zaokružena	20 A
Nazivni napon	400 V
Proizvođač-br. dijela	3038435
Sadržaj	50 St.
Tip	ST 2,5-TG
dim.	(Š x V x D) 5.2 x 60.5 x 36.5 mm
Širina	5.2 mm
Visina	60.5 mm
Dubina	36.5 mm
Mounting method	DIN rail (top hat rail) 35 mm
Colour	Grey
Width	5.2 mm
Height	60.5 mm
Depth	36.5 mm
Rated voltage	400 V
Inflammability class of insulation material according to UL94	V0
Closing plate required	TRUE
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Type of cross disconnection	None
With integrated test socket	FALSE
Number of clamp positions per level	2
Internally connected stages	TRUE
Connectable conductor cross section solid-core	0.08-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.14-0.14 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.08-2.5 mm²
Material insulation body	Other
Rated current In	20 A
