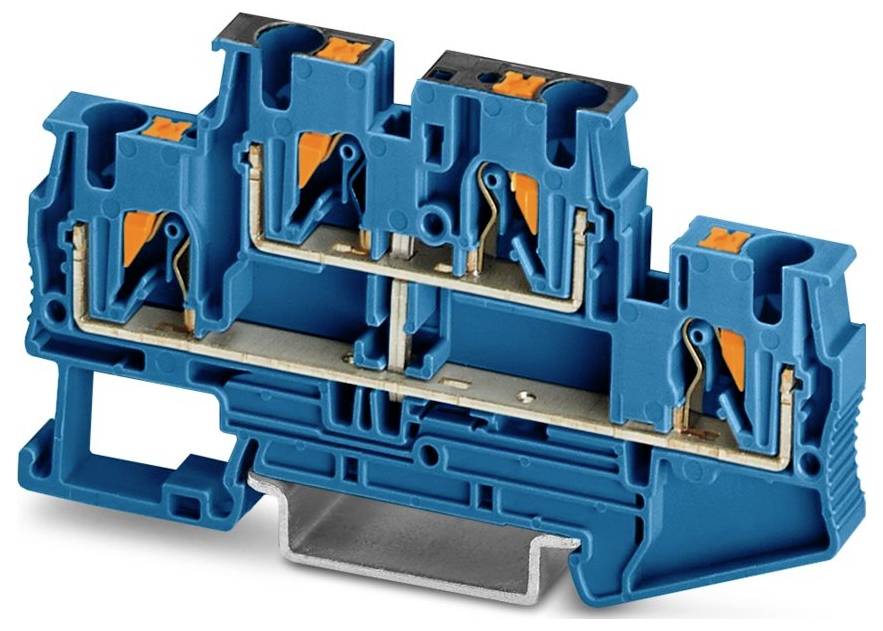

Phoenix Contact 3211827 dvokatna stezaljka plava boja 50 St.

Marka Phoenix Contact

(0 ocen)

244,99 EUR

(= 1.845,88 kn)

Proizvajalčeva koda: 3211827

EAN koda: 4055626462110

Registrirana blagovna znamka: Phoenix Contact

Ime proizvajalca: PHOENIX CONTACT Deutschland GmbH

Naslov proizvajalca: Flachsmarktstr. 8

Poštna številka proizvajalca: 32825

Kraj proizvajalca: Blomberg

Država proizvajalca: Germany

Telefon proizvajalca: +4905235300

Elektronski kontakt proizvajalca: https://www.phoenixcontact.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Vrsta proizvoda	dvokatna stezaljka
Boja	plava boja
Nazivna struja	30 A
Nazivna struja - zaokružena	30 A
Nazivni napon	500 V
Proizvođač-br. dijela	3211827
Sadržaj	50 St.
Tip	PTTB 4-PV BU
dim.	(Š x V x D) 6.2 x 83.5 x 47.5 mm
Širina	6.2 mm
Visina	83.5 mm
Dubina	47.5 mm
Mounting method	DIN rail (top hat rail) 35 mm
Colour	Blue
Width	6.2 mm
Height	83.5 mm
Depth	47.5 mm
Rated voltage	500 V
Inflammability class of insulation material according to UL94	V0
Closing plate required	TRUE
Type of electrical connection 1	Other
Type of electrical connection 2	Other
Number of levels	2
Number of clamp positions per level	2
Internally connected stages	TRUE
Connectable conductor cross section solid-core	0.2-6 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25-0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2-6 mm²
Material insulation body	Other
Rated current In	30 A
Explosion-tested version 'Ex e'	TRUE
Suitable for conductor material	Aluminium/copper
