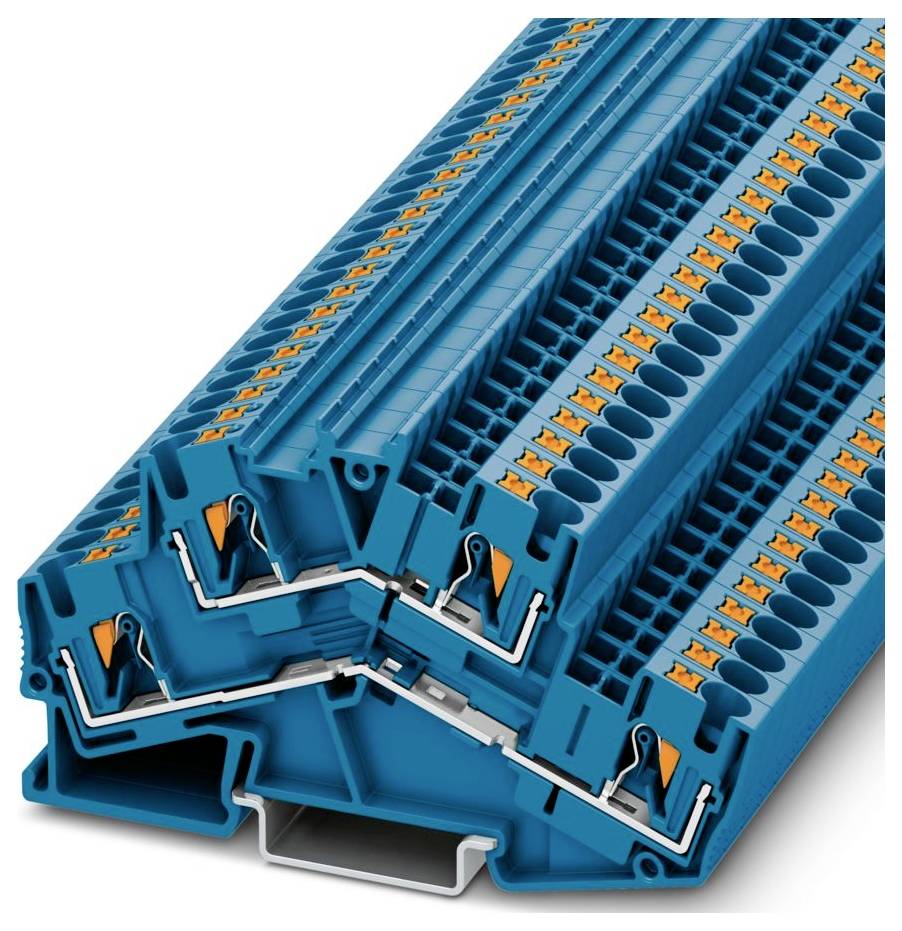

Phoenix Contact 3211838 dvokatna stezaljka plava boja 50 St.

Marka Phoenix Contact

(0 ocen)

134,99 EUR

(= 1.017,08 kn)

Proizvajalčeva koda: 3211838

EAN koda: 4046356482752

Registrirana blagovna znamka: Phoenix Contact

Ime proizvajalca: PHOENIX CONTACT Deutschland GmbH

Naslov proizvajalca: Flachsmarktstr. 8

Poštna številka proizvajalca: 32825

Kraj proizvajalca: Blomberg

Država proizvajalca: Germany

Telefon proizvajalca: +4905235300

Elektronski kontakt proizvajalca: https://www.phoenixcontact.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Vrsta proizvoda	dvokatna stezaljka
Boja	plava boja
Nazivna struja	28 A
Nazivna struja - zaokružena	28 A
Nazivni napon	800 V
Proizvođač-br. dijela	3211838
Sadržaj	50 St.
Tip	PTTBS 4 BU
dim.	(Š x V x D) 6.2 x 96 x 54.5 mm
Širina	6.2 mm
Visina	96 mm
Dubina	54.5 mm
Mounting method	DIN rail (top hat rail) 35 mm
Colour	Blue
Width	6.2 mm
Height	96 mm
Depth	54.5 mm
Rated voltage	800 V
Inflammability class of insulation material according to UL94	V0
Closing plate required	TRUE
Type of electrical connection 1	Other
Type of electrical connection 2	Other
Number of levels	2
Number of clamp positions per level	2
Internally connected stages	FALSE
Connectable conductor cross section solid-core	0.2-6 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25-0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2-6 mm²
Material insulation body	Other
Rated current In	28 A
Explosion-tested version 'Ex e'	TRUE
Suitable for conductor material	Aluminium/copper
