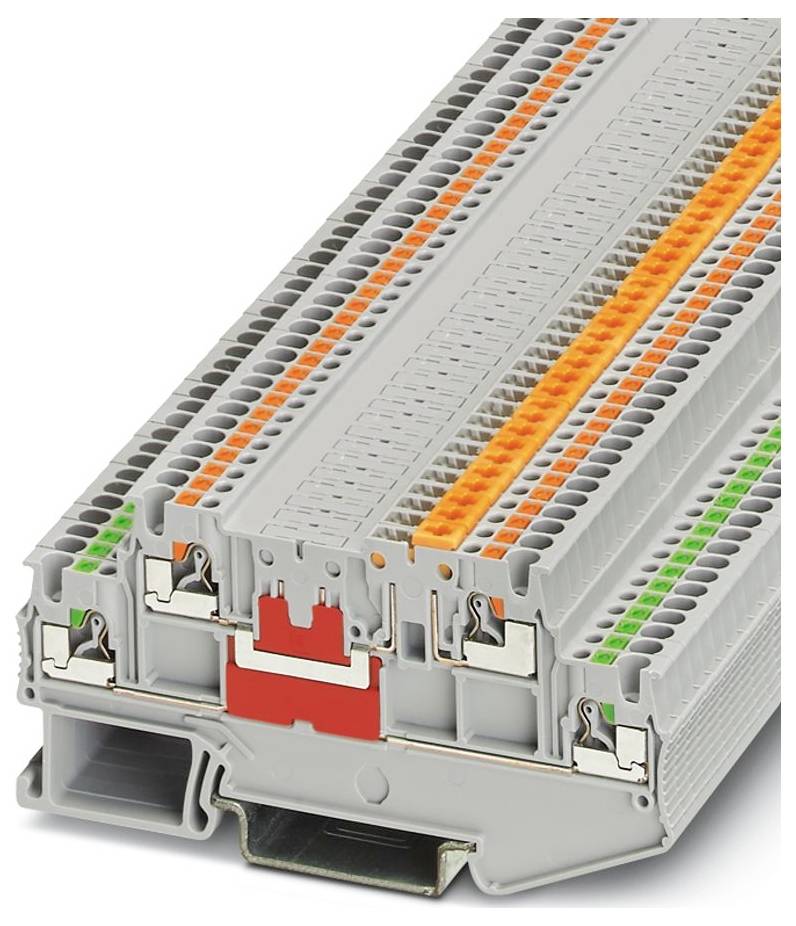

Phoenix Contact 3210341 mjerna razdvojna stezaljka siva 50 St.

Marka Phoenix Contact

(0 ocen)

399,00 EUR

(= 3.006,27 kn)

Proizvajalčeva koda: 3210341

EAN koda: 4046356942003

Registrirana blagovna znamka: Phoenix Contact

Ime proizvajalca: PHOENIX CONTACT Deutschland GmbH

Naslov proizvajalca: Flachsmarktstr. 8

Poštna številka proizvajalca: 32825

Kraj proizvajalca: Blomberg

Država proizvajalca: Germany

Telefon proizvajalca: +4905235300

Elektronski kontakt proizvajalca: https://www.phoenixcontact.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Vrsta proizvoda	mjerna razdvojna stezaljka
Boja	siva
Nazivna struja	9 A
Nazivna struja - zaokružena	9 A
Nazivni napon	400 V
Proizvođač-br. dijela	3210341
Sadržaj	50 St.
Tip	PTT 1,5/S-L/MT
dim.	(Š x V x D) 3.5 x 86 x 41.1 mm
Širina	3.5 mm
Visina	86 mm
Dubina	41.1 mm
Mounting method	DIN rail (top hat rail) 35 mm
Colour	Grey
Width	3.5 mm
Height	86 mm
Depth	41.1 mm
Rated voltage	400 V
Inflammability class of insulation material according to UL94	V0
Closing plate required	TRUE
Type of electrical connection 1	Other
Type of electrical connection 2	Other
Type of cross disconnection	None
With integrated test socket	FALSE
Number of clamp positions per level	2
Internally connected stages	TRUE
Connectable conductor cross section solid-core	0.14-1.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.14-0.14 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.14-1.5 mm²
Material insulation body	Other
Rated current In	9 A
