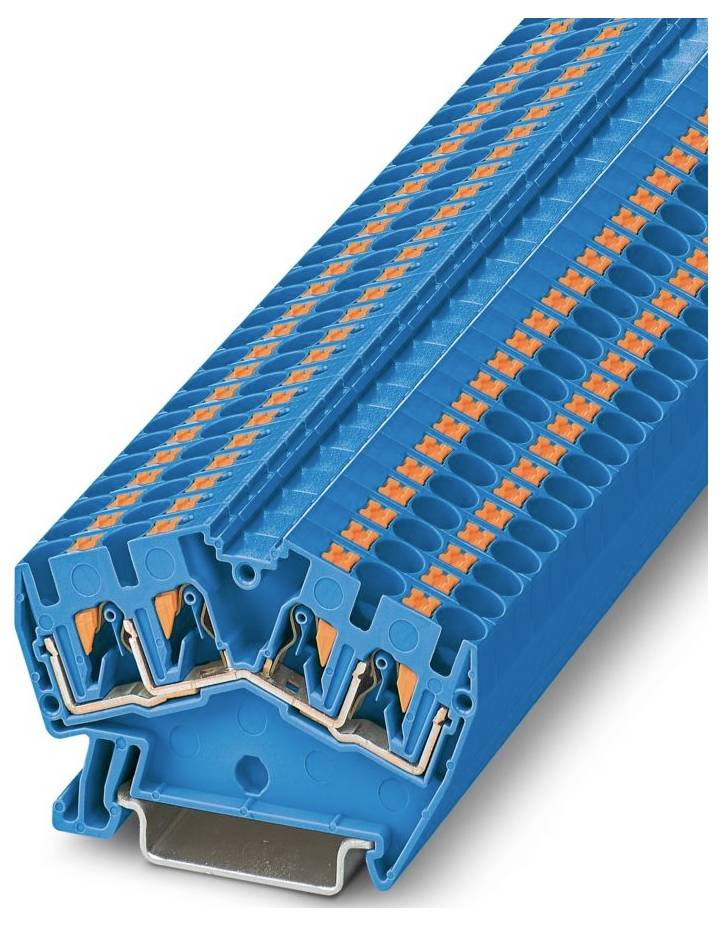

Phoenix Contact 3213608 prolazna stezaljka plava boja 50 St.

Marka Phoenix Contact

(0 ocen)

93,99 EUR

(= 708,17 kn)

Proizvajalčeva koda: 3213608

EAN koda: 4055626084893

Registrirana blagovna znamka: Phoenix Contact

Ime proizvajalca: PHOENIX CONTACT Deutschland GmbH

Naslov proizvajalca: Flachsmarktstr. 8

Poštna številka proizvajalca: 32825

Kraj proizvajalca: Blomberg

Država proizvajalca: Germany

Telefon proizvajalca: +4905235300

Elektronski kontakt proizvajalca: https://www.phoenixcontact.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Vrsta proizvoda	prolazna stezaljka
Boja	plava boja
Nazivna struja	32 A
Nazivna struja - zaokružena	32 A
Nazivni napon	800 V
Proizvođač-br. dijela	3213608
Sadržaj	50 St.
Tip	PTS 4-QUATTRO BU
dim.	(Š x V x D) 6.2 x 62.4 x 43 mm
Širina	6.2 mm
Visina	62.4 mm
Dubina	43 mm
Mounting method	DIN rail (top hat rail) 35 mm
Colour	Blue
Width	6.2 mm
Height	62.4 mm
Depth	43 mm
Rated voltage	800 V
Operating temperature	-60-110 °C
Inflammability class of insulation material according to UL94	V0
Closing plate required	TRUE
Type of electrical connection 1	Other
Type of electrical connection 2	Other
Number of clamp positions per level	4
Internally connected stages	TRUE
Connectable conductor cross section solid-core	0.2-6 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25-0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2-6 mm²
Material insulation body	Other
Rated current In	32 A
Explosion-tested version 'Ex e'	TRUE
Suitable for conductor material	Aluminium/copper
