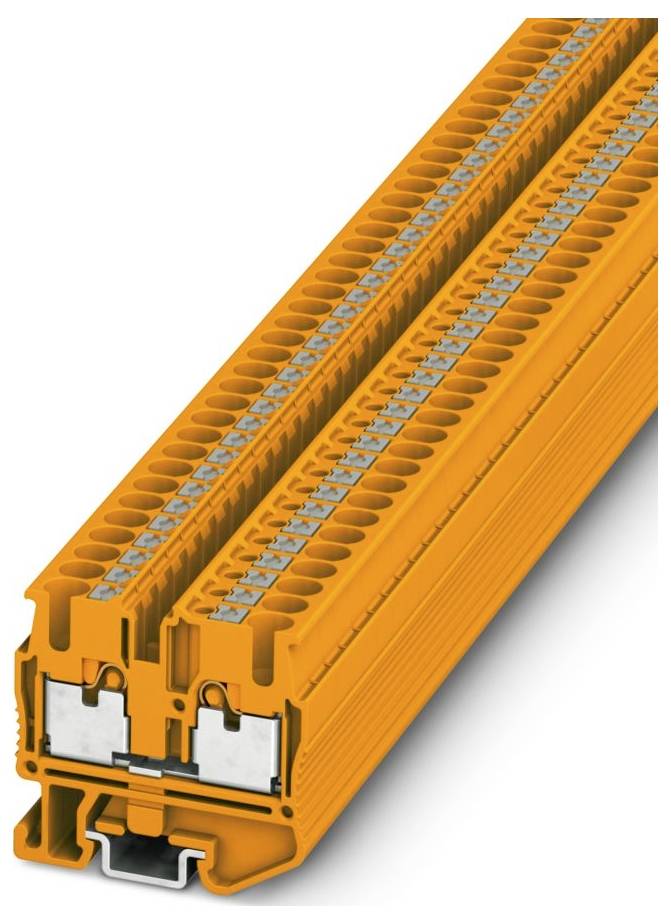

Phoenix Contact 3248127 mini prolazna stezaljka narančasta 50 St.

Marka Phoenix Contact

(0 ocen)

45,99 EUR

(= 346,51 kn)

Proizvajalčeva koda: 3248127

EAN koda: 4055626136448

Registrirana blagovna znamka: Phoenix Contact

Ime proizvajalca: PHOENIX CONTACT Deutschland GmbH

Naslov proizvajalca: Flachsmarktstr. 8

Poštna številka proizvajalca: 32825

Kraj proizvajalca: Blomberg

Država proizvajalca: Germany

Telefon proizvajalca: +4905235300

Elektronski kontakt proizvajalca: https://www.phoenixcontact.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Vrsta proizvoda	mini prolazna stezaljka
Broj polova	1
Boja	narančasta
Nazivna struja	24 A
Nazivna struja - zaokružena	24 A
Nazivni napon	500 V
Proizvođač-br. dijela	3248127
Sadržaj	50 St.
Tip	MPT 2,5 OG
dim.	(Š x V x D) 5.2 x 36 x 32.1 mm
Širina	5.2 mm
Visina	36 mm
Dubina	32.1 mm
Mounting method	DIN rail (top hat rail) 15 mm
Colour	Orange
Width	5.2 mm
Height	36 mm
Depth	32.1 mm
Rated voltage	500 V
Operating temperature	-60-110 °C
Inflammability class of insulation material according to UL94	V0
Closing plate required	TRUE
Type of electrical connection 1	Other
Type of electrical connection 2	Other
Number of clamp positions per level	2
Internally connected stages	TRUE
Connectable conductor cross section solid-core	0.14-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.14-0.14 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.14-2.5 mm²
Material insulation body	Other
Rated current In	24 A
Explosion-tested version 'Ex e'	TRUE
Suitable for conductor material	Aluminium/copper
